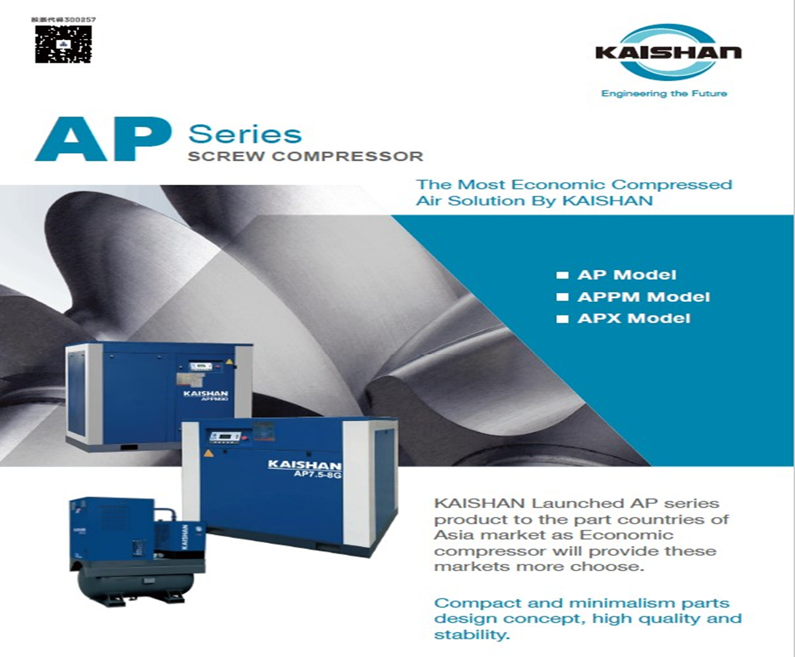

The Most Economic Compressed Air Solution By KAISHAN
KAISHAN launched AP series product to the part of Asia market as Economic compressor will provide these markets more choose.
Motor power 7.5 -22KW
Pressure: 7-13bar
Flow : 25 cfm to 120 cfm
Single-stage Rotary Screw Air end is engineered for its durability. Larger rotors allows for bigger bearings, 30%-50% slower rotor speeds results in less power consumption, lower sound levels and reduced maintenance cost . One-piece bearing housing ensures both rotors are Ridgely held by the bearings in proper alignment during transient periods such as machine startups/shutdowns or load changes.
1 : 1 Drive hence no gears. Reduces power by 3 % as compared to Gear drive Airend.
Motor power 25 HP – 550HP, Pressure: 8-13bar. Flow : 115 cfm to 3500 cfm
Highest Efficient Series, Lowest Specific Power (kW / cfm), Lowest Oil Carry-over<2ppm, High Reliability. KRSP compressors are built to be compatible with optional VFD feature. Industry renowned VFD units are used in KRSP series compressor package, Compact VFD design allows a smaller footprint, Monitors key function of the unit, Maintenance free , The VFD minimizes starting current peak loads , Extremely low sound level.
Flow : 120 cfm to 2627 cfm / Motor power 18 KW – 400 KW, Pressure: 8-13bar
KRSA Series Low Pressure Screw Air Compressors are specially designed for Flow Range: 231 cfm – 1990 cfm, Discharge pressure: 1.5 bar, 2 bar, 3 bar and 5 bar applications. When a 7 bar standard air compressor is run for a plant air pressure requirement of 2 – 5 bar, it will lead to higher power consumption as compared to Kaishan Low pressure compressors. Kaishan low pressure screw air compressors with their patented low compression ratio can deliver same output flow (cfm) with 20 – 50 % lower power consumption. The Capacity of a screw air compressor with 132 kW motor at 7 bar will be 850 cfm. Kaishan Low pressure compressor with 132 kw motor at 3 bar will have a flow of 1547 cfm. This power saving enables you to recover your investment in less than a year.
Applications – Textile, Cement, Glass, Flue-gas Desulfurization and Pneumatic Conveying.
Two-stage compressors have power advantage of 8% to 15% over equivalent size single-stage compressors for two key reasons a) Inter Cooling System and b) Division of Compression Ratio. Kaishan KRSP-2 two-stage compressors use two sets of rotors arranged in a unique parallel design that achieve higher efficiencies than other two-stage rotor arrangements.
The KRSP 2 series compressors offer unmatched full-load efficiency often providing two-year paybacks in energy savings compared with a single-stage compressor
Flow Range: 457 cfm – 3636 cfm , Motor Range: 75 kW – 450 kW, Discharge pressure: 6 bar, 7 bar, 8 bar and 10 bar & 13 bar
The range of PMV Series Compressors integrate the highest quality and most effective components into a compact unit to provide maximum output with minimum energy usage. These highly advanced air compressors provide world class efficiency and performance and yet they are heavy duty units developed to ensure superior durability and reliability.
Flow Range: 84 cfm – 2119 cfm , Motor Range: 15 kW – 250 kW, Discharge pressure: 6 bar – 10 bar
KRSA Series Low Pressure Screw Air Compressors are specially designed for Flow Range: 231 cfm – 1990 cfm, Discharge pressure: 1.5 bar, 2 bar, 3 bar and 5 bar applications. When a 7 bar standard air compressor is run for a plant air pressure requirement of 2 – 5 bar, it will lead to higher power consumption as compared to Kaishan Low pressure compressors. Kaishan low pressure screw air compressors with their patented low compression ratio can deliver same output flow (cfm) with 20 – 50 % lower power consumption. The Capacity of a screw air compressor with 132 kW motor at 7 bar will be 850 cfm. Kaishan Low pressure compressor with 132 kw motor at 3 bar will have a flow of 1547 cfm. This power saving enables you to recover your investment in less than a year.
Applications – Textile, Cement, Glass, Flue-gas Desulfurization and Pneumatic Conveying.
Two-stage compressors have power advantage of 8% to 15% over equivalent size single-stage compressors for two key reasons a) Inter Cooling System and b) Division of Compression Ratio. Kaishan KRSP-2 two-stage compressors use two sets of rotors arranged in a unique parallel design that achieve higher efficiencies than other two-stage rotor arrangements.
The KRSP 2 series compressors offer unmatched full-load efficiency often providing two-year paybacks in energy savings compared with a single-stage compressor
Flow Range: 457 cfm – 3636 cfm , Motor Range: 75 kW – 450 kW, Discharge pressure: 6 bar, 7 bar, 8 bar and 10 bar & 13 bar
